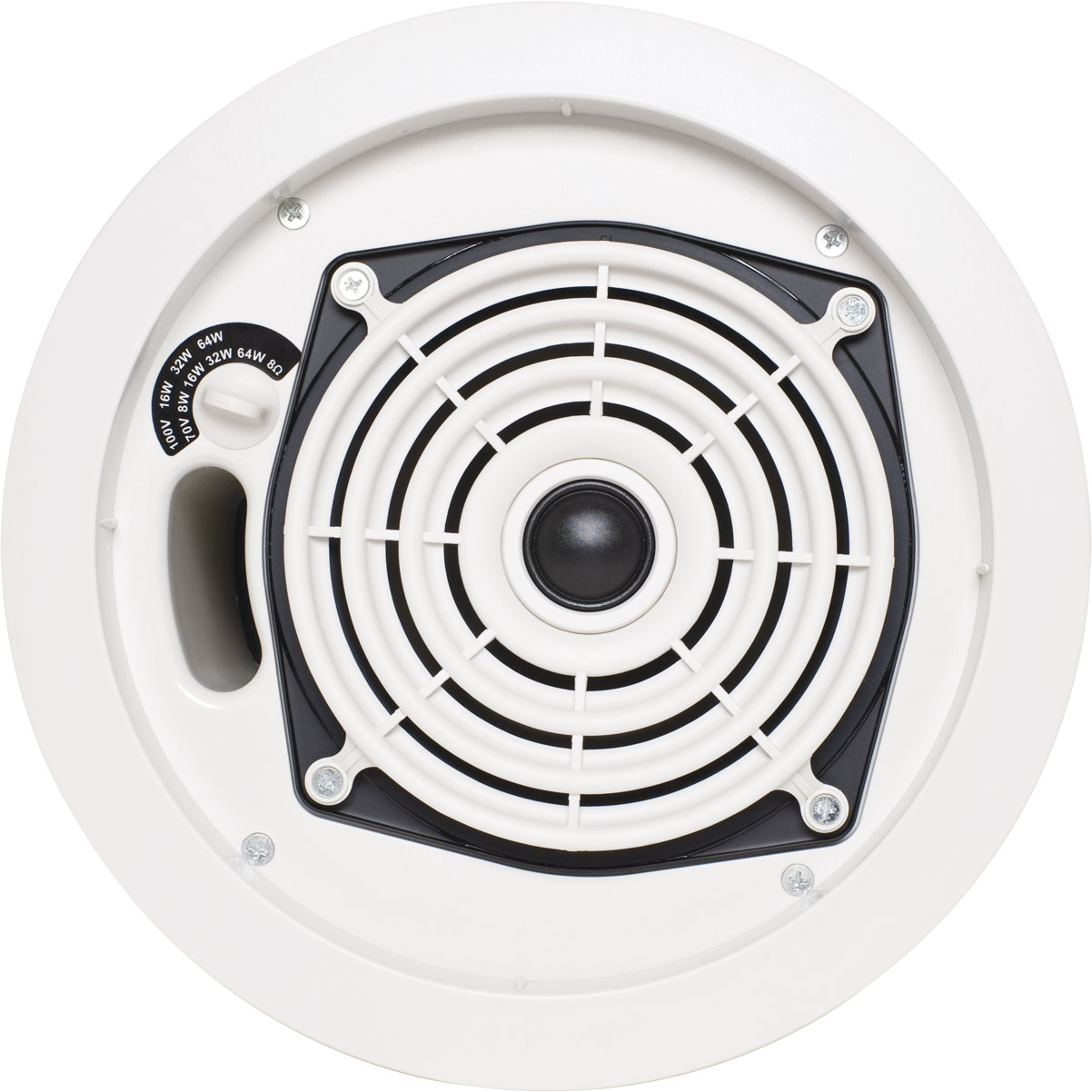

SpeakerCraft® PRO Commercial 8" White In-Ceiling Speaker

Product Overview

The SC Pro Commercial Series features two-way loudspeakers with coaxially mounted tweeters supported by our patented WavePlane™ tweeter baffle. This technology minimizes interaction between the tweeter and the modulation woofer surface, which results in greater dispersion and better high-frequency response. The tweeters also pivot, making it possible to direct the critical high frequencies at a specific listening area or reflect them off an adjacent surface for greater coverage, allowing for increased flexibility in system design and speaker placement.

When SpeakerCraft decided to produce loudspeakers for this market, we refused to believe that commercial clients were not concerned with the quality of the music their systems would deliver. With this in mind, we have addressed commercial sound with the same passion for performance that has allowed us to dominate the residential side of the business. The result is a series of commercial-grade products that deliver the level of performance for which SpeakerCraft has become famous.

8″ Polypropylene Cone Woofer

1″ Pivoting Polyamide Dome Tweeter Mounted On A WavePlane™ Tweeter Baffle

UL 1480 Certified

Sensitivity: 88dB 1W/1m

Power Handling: 140 Watts

Transformer Taps (Com85-T): 70V: 64W, 32W, 16W, 8W

100V: 64W, 32W, 16W + Transformer Bypass (8 Ohms)

Impedance: 8 Ohms

Frequency Response: 56Hz – 20kHz

Diameter x Depth: 12 15/16″ x 9 5/16″ (329 mm x 236.47 mm)

Cut-Out Diameter: 11 1/2″ (292.1 mm)
