SpeakerCraft® Profile AIM LCR5 Five White In-Wall Speaker


Model #:

ASM54655-2

Model #: ASM54655-2
170812
SpeakerCraft
$590.00

At a Glance

Product Dimensions 9.25"h x 17.44"w x 4"d

SpeakerCraft® Profile AIM LCR5 Five In-Wall Speaker with pivoting speaker baffle and flangeless appearanceRead More

$590.00

Get to know this product.

Product Overview

Product Overview

The Profile AIM LCR Series was created to compliment the trend of on-wall mounted flat panel television viewing and is the perfect addition either beside, above or below any flat panel display. They are an ideal choice in a multi-channel surround sound system for all channels when wanting identical performance from each of the in-wall surround sound channels. The Profile AIM LCR Series offers the ability to pivot the entire baffle, enabling the user to easily focus the sound into the primary listening area creating a more realistic and enveloping sound stage.

  • 2 Way, In-Wall LCR (Left, Center, Right) Speaker with Dual 5 1/4” Woofers and 1” Tweeter mounted on a Pivoting Speaker Baffle

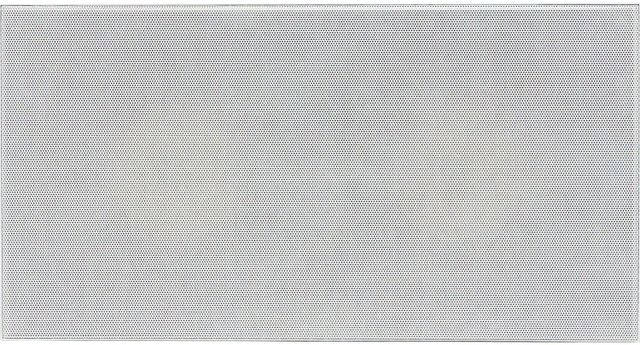

  • Flangeless Appearance with Magnetically Attached Full Coverage Steel Grille

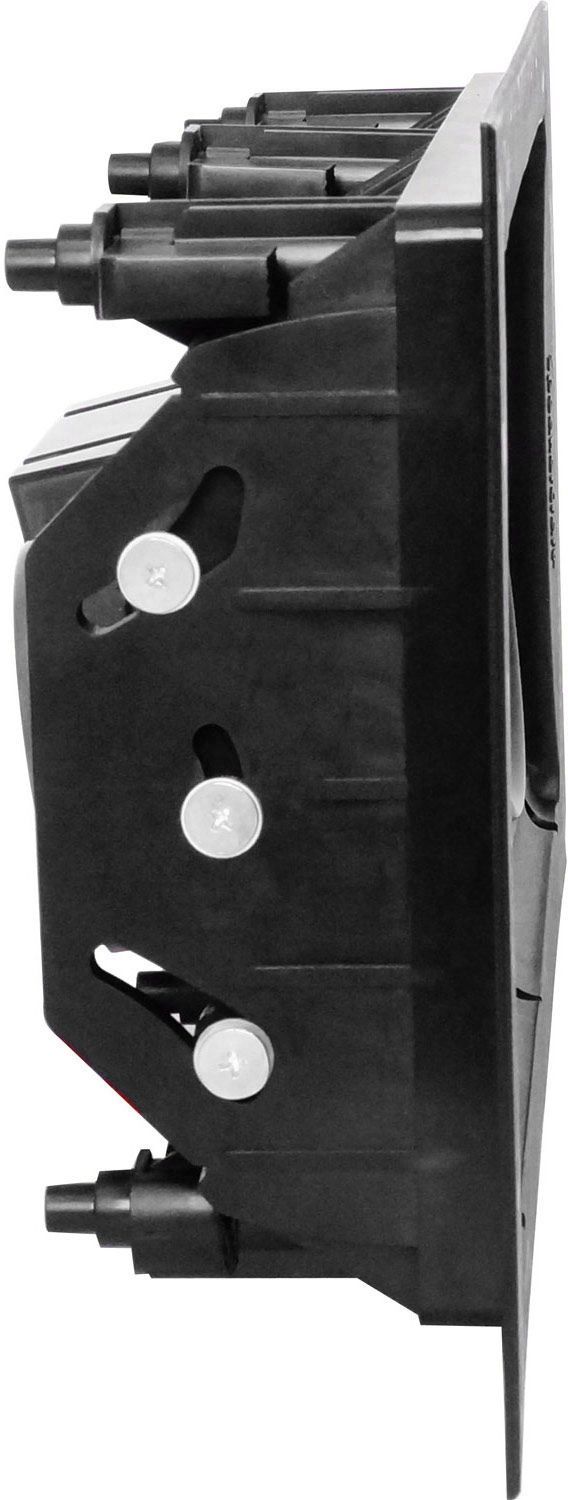

  • Pivoting Speaker Baffle
  • Two - 5 1/4” Kevlar Woofers with Phase Plugs
  • Independently Pivoting 1” Aluminum/Magnesium Dome Tweeter
  • Bass & Treble EQ Switches
  • Timbre-Matched to All FIVE Series Speakers
  • Sensitivity: 91dB 1W/1m
  • Power Handling: 100 Watts
  • Adjustable Impedance: 8/6 Ohm
  • Frequency Response: 48Hz - 20kHz
  • Dimensions: (H x W x D) 9 1/4” x 17 7/16” x 4” 235mm x 443mm x 102mm
  • Wall Cut-Out: (H x W) 7 1/2” x 14 1/4” (190mm x 362mm)
Useful Documents
Specifications

General Specs

Color Finish NameWhite
RMS Power Handling (Watts)100
ColorWhite
Impedance8 ohms
Number of Speakers1
Speaker TypeIn-Wall Speakers
Depth (in.)4
Height (in.)9.25
Width (in.)17.44
Woofer Size5.25" x 2

Construction

Tweeter Composition:Aluminum/Magnesium Pivoting
Woofer Composition:Kevlar® Cone

Other

Sold As:Each

Specifications

Sensitivity:91 dB
Frequency Response:48Hz - 20kHz
WarningProposition 65 Warning for California Residents
